Description

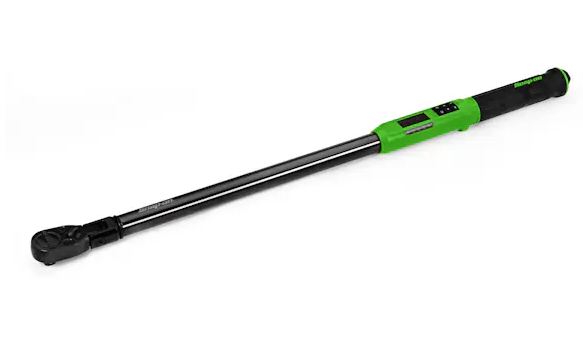

1/2″ Drive Flex-Head TechAngle® Torque Wrench (15–300 ft-lb)
Features
• LARGE LCD SCREEN with bright backlight; numbers become larger and bolder during active torque for optimal viewing
• ADVANCED FEATURES include cycle counter, customizable sleep timer, language selection, auto torque calculation for torque adaptors, calibration alerts, battery level indication, and numerous alert mode customizations, allowing the user to customize the torque wrench to your work preferences
• MULTI-LINGUAL DISPLAY programmable to display commands and signals in English, Spanish, French or German
• POWER INTERRUPTION TECHNOLOGY prevents loss of continuity if dropped; prevents loss of work during head bolt pattern applications
• PROTECTED BATTERY CAP design with solid brass contacts prevents accidental loosening and ensures continuity
• Torque Accuracy: ±2% CW and ±3% CCW, 20–100% of full scale
• Angle Accuracy: ±1% of Reading, ±1° @ Angular Velocity >10°/Sec <180°/Sec
• Angle range: 0–360°
• Six measurement modes (ft-lb, in-lb, N?·m, Kgcm, dN?·m, angle)
• Dual progressive LEDs allow user to see active torque at various work positions; enables user to anticipate torque and slow down when getting close to desired torque level
• Torque-then-angle allows the user to torque fasteners and then switch to angle without removing the torque wrench from the fastener
• Textured Grip offers a comfortable, non-slip surface
• Flared end prevents hand from slipping off during high-leverage applications
• Ratchet mechanism features Snap-on® Dual 80® Technology design—only 4.5° of ratchet arc
• Cycle counter to ensure how many fasteners have been torqued
• Motorcycle-style handle with seamless textured grip offers a comfortable, non-slip surface
• Low-profile buttons protect against accidental activation
• Protected end cap design with solid brass contacts prevents accidental loosening and ensures continuity
• Highly configurable ten presets with the ability to customize numerous functions (sleep mode, LCD display, calibration, etc.) and store up to 50 records
• Large LCD screen numbers become larger and bolder during active torque making it easier to read during use
• Four alert modes (LCD, Dual LED, Audible, Vibratory)
• Features an internal translation feature that allows the user to select a language for the LCD to display (English, French, German or Spanish)
• Long battery life: 80 hours continuous use
• Two year warranty
Specifications
Range, ft-lb | 15–300 |
Range, in-lb | 180–3,600 |
Gear Action | 4.5° |
Country of Origin | USA |
Storage Case | PBATECH300B |
Gear Teeth | 80 |
Battery, Type (qty) | AA Alkaline (3) |
Head Depth, inches | 3/4 |
Length, inches | 30 |
Flex Joint Repair Kit | TECH3FRATB |
Head Width, inches | 1-5/8 |
Ratchet Service Kit | RKRS80A |
Head Type | Sealed Flex Head |
Square Drive, inches | 1/2 |
Weight (without batteries), lb (kg) | 3.95 (1.79) |
Warranty
Snap-on Repair Center, 2 YEARS from Date of Purchase, Repair or Calibrate at Snap-on Repair Center.
