Description

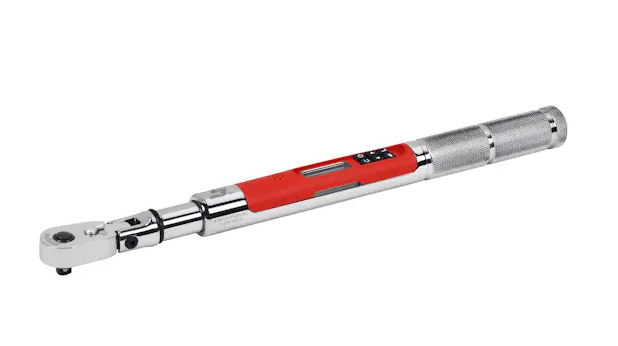

1/4″ Drive Flex-Head Quick-Release TechAngle® Micro Torque Wrench (15–300 in-lb)
1/4″ Drive Flex-Head Quick-Release TechAngle® Micro Torque Wrench (15–300 in-lb)
Features
• LARGE LCD SCREEN with bright backlight; numbers become larger and bolder during active torque for optimal viewing
• ADVANCED FEATURES include cycle counter, customizable sleep timer, language selection, auto torque calculation for torque adaptors, calibration alerts, battery level indication, and numerous alert mode customizations, allowing the user to customize the torque wrench to your work preferences
• MULTI-LINGUAL DISPLAY programmable to display commands and signals in English, Spanish, French or German
• POWER INTERRUPTION TECHNOLOGY prevents loss of continuity if dropped; prevents loss of work during head bolt pattern applications
• PROTECTED BATTERY CAP design with solid brass contacts prevents accidental loosening and ensures continuity
• Quick-release has a positive locking feature to hold the socket securely in place when needed and push-button for easy removal
• Ability to get in tight recesses makes it an ideal torque wrench for close clearance applications like valve covers
• Knurled handle provides a secure, non-slip gripping surface
• 72-tooth gear (1/4″ drive)
• Four alert modes (LCD, LED, vibratory, audible)
• Flex yoke design (15°)
• ±2% CW and 3% CCW (20–100% FS)
• Five scale references (ft-lb, in-lb, N?·m, Kg-cm, dN?·m)
• Same features as existing ATECH series torque wrenches
• Uses one AA battery
• Only weighs .93 lb
• Patent pending
• Two year warranty
• Compact steel body electronic torque wrench based on ATECH STEEL design; 11.6″ L and .90″ Diameter
Specifications
| Range, ft-lb | 1–20 |
| Range, in-lb | 15–300 |
| Gear Action | 5° |
| Country of Origin | USA |
| Storage Case | PBATECH240M |
| Gear Teeth | 72 |
| Battery, Type (qty) | Lithium Metal (1) |
| Head Depth, inches | 7/16 |
| Length, inches | 11.6 |
| Flex Joint Repair Kit | TECH1FRATA |
| Head Width, inches | 7/8 |
| Ratchet Service Kit | RKRTR72A |
| Head Type | Sealed Flex Head |
| Square Drive, inches | 1/4 |
| Weight (without batteries), lb (kg) | .93 (.42) |
Warranty
Mat/Workmanship Snap-on , Blue Point, Consumables, Sets, Service Repair Parts, Private Branded Mfg. by Snap-on & Industrial Specials The item will be Audited at the Replacement Processing Center.
