Description

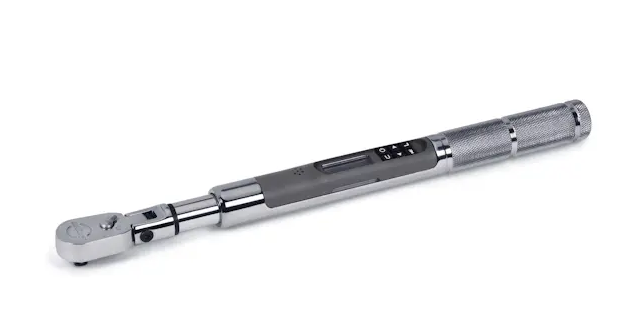

1/4″ Drive Flex-Head TechAngle® Micro Torque Wrench (15–300 in-lb) (Dark Titanium)
1/4″ Drive Flex-Head TechAngle® Micro Torque Wrench (15–300 in-lb) (Dark Titanium)
Features
• LARGE LCD SCREEN with bright backlight; numbers become larger and bolder during active torque for optimal viewing
• ADVANCED FEATURES include cycle counter, customizable sleep timer, language selection, auto torque calculation for torque adaptors, calibration alerts, battery level indication, and numerous alert mode customizations, allowing the user to customize the torque wrench to your work preferences
• MULTI-LINGUAL DISPLAY programmable to display commands and signals in English, Spanish, French or German
• POWER INTERRUPTION TECHNOLOGY prevents loss of continuity if dropped; prevents loss of work during head bolt pattern applications
• PROTECTED BATTERY CAP design with solid brass contacts prevents accidental loosening and ensures continuity
• Torque: 15–300 in-lb
• Torque Accuracy: ±2% CW and ±3% CCW, 20–100% of full scale
• Angle Accuracy: ±1% of Reading, ±1° @ Angular Velocity >10°/Sec <180°/Sec
• Six measurement modes (ft-lb, in-lb, N·m, Kgcm, dN·m, angle)
• Four alert modes (LCD, LED, vibratory, audible)
• Dual progressive LEDs allow user to see active torque at various work positions; enables user to anticipate torque and slow down as they get closer to desired torque level
• Ability to get in tight recesses makes it an ideal torque wrench for close-clearance applications like valve covers
• Torque-then-angle allows the user to torque fasteners and then switch to angle without removing the torque wrench from the fastener
• Flex-yoke design allows 15° of vertical movement for better access of fasteners
• Textured grip provides a comfortable, non-slip surface
• Compact 11.6″ L x 0.90″ dia. ATECH steel-body electronic torque wrench
• Weighs only 0.93 lb
• Uses one AA battery
• Two year warranty
• Patent pending
Specifications
| Range, ft-lb | 1.25–25 |
| Range, in-lb | 15–300 |
| Gear Action | 5° |
| Country of Origin | USA |
| Storage Case | PBATECH240M |
| Gear Teeth | 72 |
| Battery, Type (qty) | Lithium Metal (1) |
| Head Depth, inches | 7/16 |
| Length, inches | 11.6 |
| Flex Joint Repair Kit | TECH1FRATA |
| Head Width, inches | 7/8 |
| Ratchet Service Kit | RKRTR72A |
| Head Type | Sealed Flex Head |
| Square Drive, inches | 1/4 |
| Weight (without batteries), lb (kg) | .93 (.42) |
Warranty
Snap-on Repair Center, 2 YEARS from Date of Purchase, Repair or Calibrate at Snap-on Repair Center.
