Description

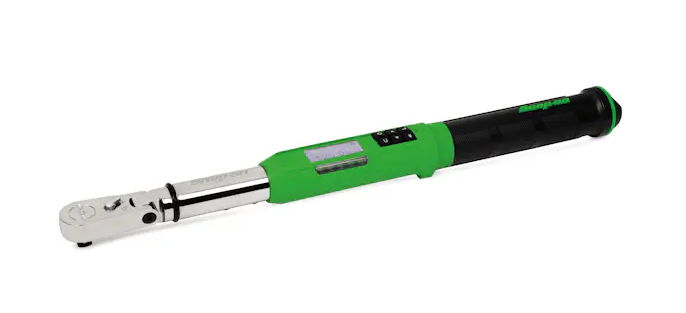

3/8″ Drive Flex-Head TechAngle® Torque Wrench (5-125 ft-lb) (Green)
Features
• LARGE LCD SCREEN with bright backlight; numbers become larger and bolder during active torque for optimal viewing
• ADVANCED FEATURES include cycle counter, customizable sleep timer, language selection, auto torque calculation for torque adaptors, calibration alerts, battery level indication, and numerous alert mode customizations, allowing the user to customize the torque wrench to your work preferences
• MULTI-LINGUAL DISPLAY programmable to display commands and signals in English, Spanish, French or German
• POWER INTERRUPTION TECHNOLOGY prevents loss of continuity if dropped; prevents loss of work during head bolt pattern applications
• PROTECTED BATTERY CAP design with solid brass contacts prevents accidental loosening and ensures continuity
• Provides a wide working range (5–125 ft-lb) which allows technicians to work on a wider array of popular applications, including passenger tires
• Heavy-duty yoke designed for higher torque load
• Patent-pending Snap-on® Multi Axis Gyro Compensation provides a high level of accuracy even while in a flexed position
• MAG COMP measures and compensates for changes in reaction distance due to flex angle of the torque wrench
• 80-tooth ratchet for optimal blend of strength and reduced swing arc of just 4.5° shorter length and minimal swing arc allow technician to use in tighter areas, such as engine compartments
• Standard ATECH features include dual progressive LEDs, LCD screen with backlight, four alert modes (LED, LCD, vibratory, audible), six scales (ft-lb, in-lb, N?·m, kg-cm, dN?·m, angle), 10 presets, torque then angle, low profile buttons, power interruption technology, cycle counter, battery level indicator and other customizable features
• Meets or exceeds ASME® B107.300-2010 (B107.28) standard
• Two year warranty
• Assembled in USA
• Yoke engineered with more steel mass and extremely tight tolerance ratchet tang-to-yoke fit
• Provides more torsional strength while still allowing smooth indexing/movement of the ratchet head (up to 15°)
• Smaller yoke/ratchet gap which reduces potential pinch point(s)
Specifications
| Range, ft-lb | 5–125 |
| Range, in-lb | 60–1,500 |
| Gear Action | 4.5° |
| Color | Green Housing/Chrome Body |
| Country of Origin | USA |
| Storage Case | PBATECH100B |
| Gear Teeth | 80 |
| Battery, Type (qty) | AA Alkaline (3) |
| Head Depth, inches | 9/16 |
| Length, inches | 17-25/32 |
| Flex Joint Repair Kit | RKRFLLF80JT |
| Head Width, inches | 1-1/4 |
| Ratchet Service Kit | RKRFLLF80 |
| Head Type | Sealed Flex Head |
| Square Drive, inches | 3/8 |
| Weight (without batteries), lb (kg) | 2.2 (0.9) |
Warranty
Snap-on Repair Center, 2 YEARS from Date of Purchase, Repair or Calibrate at Snap-on Repair Center.
Application Information
General automotive use: engines, suspension and tires
