Description

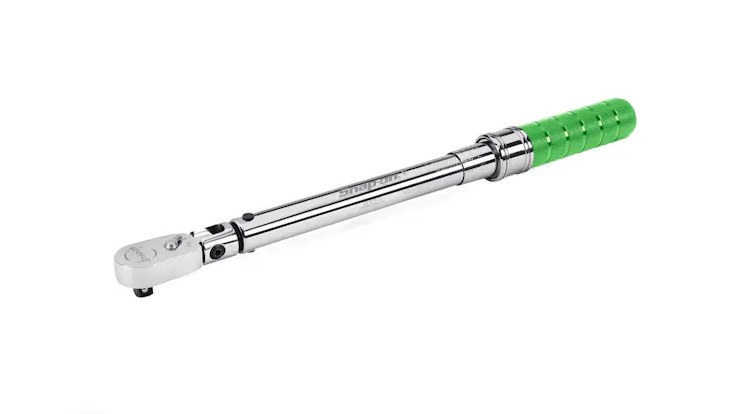

3/8″ Drive Micro Adjustable Torque Wrench (5-75 ft-lb) (Green)
Features
• Certificate of Calibration: A Certificate of Calibration is packed with every QD Series Torque Instrument. Actual certification readings and individual instrument serial number are included. Each torque instrument, as calibrated at the factory, is certified to meet the accuracy specified in ANSI B107.14M-1994 and was calibrated on a torque standard traceable to the National Institute of Standards Technology (NIST)
• U.S. Patent 4,934,220 applies to all QD Series Ratchet Head Models. U.S. Patent 6,125,722 applies to 1/4″, 3/8″ and 1/2″ drive Ratchet Head Models only
• Positive Stop: Instrument can not be accidentally disassembled if wound down past scale
• 5-75 ft-lb
• Consistently accurate readings and rugged, trouble-free performance
• Accurate up to 3% clockwise from 20% of full scale to full scale
• Sealed ratchet head keeps out dirt and moisture, while being virtually maintenance free
• Roll-marked scale for better visibility and permanency
• Reduced swing arc allows technician to use in tighter areas, such as engine compartments, offering overall improved clearance
• Unique cam design minimizes friction due to reduced contact area between cam and internal tube wall
• Cam retains and releases lubricant where needed, reducing friction for more accurate and repeatable torque values
• Packaged with certificate of calibration
• Rugged, trouble-free performance
Specifications
| US Patent | (#4,934,220 and #6,125,722) |
| Country of Origin | USA |
| Storage Case | PBQD2 |
| Head Style | Flex Ratchet |
| Gear Teeth | 80 |
| Head Depth, inches | 9/16 |
| Length, inches | 15-3/4 |
| Range, maximum | 75 ft-lb |
| Increments | .5 ft-lb |
| Head Width, inches | 1-5/32 |
| Swing Arc | 10° |
| Range, minimum | 5 ft-lb |
| Ratchet Service Kit | RKRF936 |
| Square Drive, inches | 3/8 |
